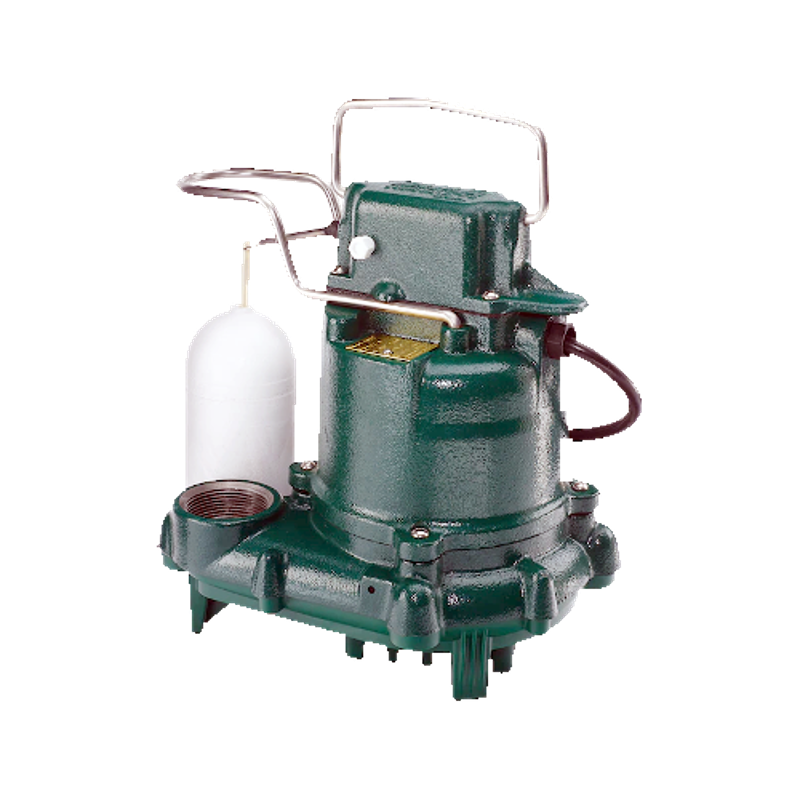

ZOELLER M53 1/3 HP 115V SUMP / EFFUENT
Return to SEWAGE PUMPS AND EQUIPMENT
Model 53®
- Cast iron motor and pump housing
- Engineered thermoplastic base
- Engineered, glass-filled, plastic impeller with metal insert
- Stainless steel guard and handle
- Cast iron sleeve bearings
Standard Features
- Corrosion-resistant, powder-coated epoxy finish
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard, and handle
- No screens to clog
- Watertight, neoprene square ring between motor and pump housing
- Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure-tested after assembly
- Carbon and ceramic shaft seal
- Maximum temperature for effluent or dewatering: 130 °F (54 °C)
- Passes 1/2” (13 mm) spherical solids
- 1-1/2” NPT discharge
- On point: 7-1/4” (18 cm)
- Off point: 3” (8 cm)
- Major width: 10-3/32″ (26.2 cm)
- Major height: 10-1/16″ (25.6 cm)
- Watertight and dust-tight
- 1 year limited warranty on 53 and 57
- 3 year limited warranty on 55 and 59
$202.47
23
181900008
