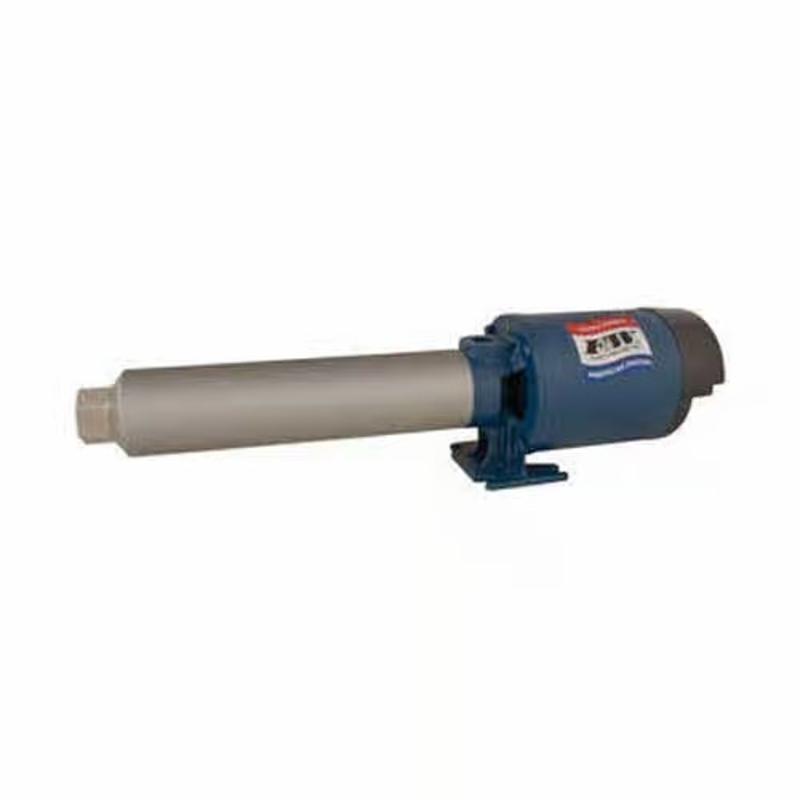

FLINT & WALLING - F&W PB0516A071 3/4HP BOOSTER PUMP
Return to FLINT AND WALLING PRESSURE BOOSTER PUMPS

Pressure Booster Performance

  • Capacities up to 27.6 GPM (model series maximum)

  • Pressures up to 190 PSI (model series maximum)

  • Multi-stage pump design for stable, efficient pressure boosting

  • Built for reliable residential and light commercial use

Typical Applications

  • Pressure cleaning systems

  • Spray and mist systems

  • Jockey pump service

  • Booster service and general pressure boosting

  • Reverse osmosis feed systems

  • Water circulation and transfer

    Pricing

    Call 800‑748‑1889 for current pricing and availability.

  • Motor: 3/4 HP

  • Frequency: 60 Hz

  • Speed: 3,450 RPM

  • Voltage: Dual Voltage 115/230V

  • Phase: Single Phase (1Ø)

  • Stages: 16-Stage Multi-Stage Design

  • Impellers: Engineered thermoplastic impellers designed for efficient flow, long service life, and corrosion resistance

PB Series-Booster-Repair-Parts-Pg-4-8A


$898.98

45

Register/Login to Order
