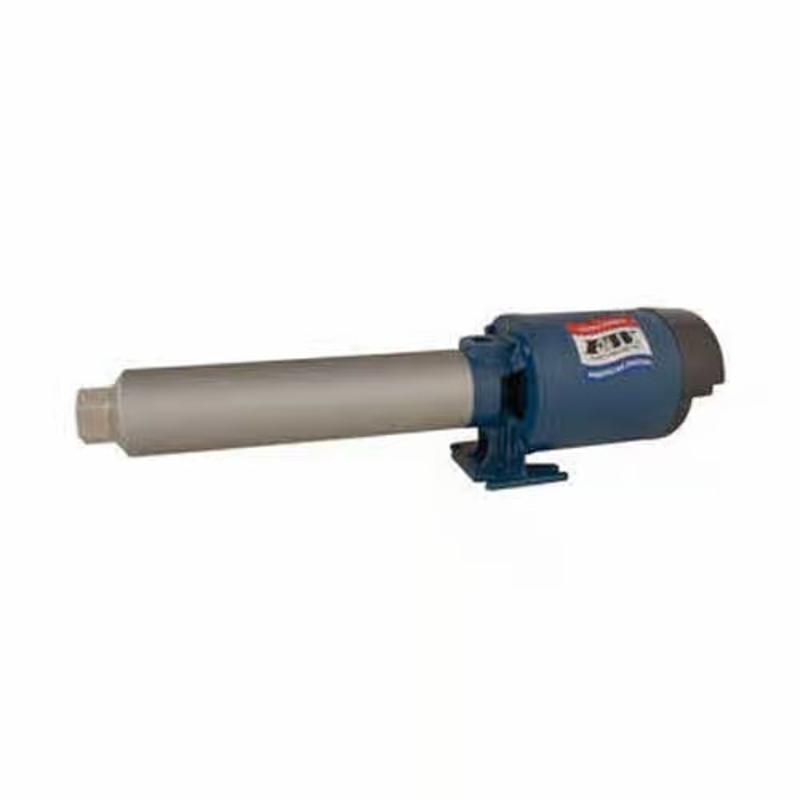

FLINT & WALLING - F&W PB1014A101 1HP BOOSTER PUMP
Return to FLINT AND WALLING PRESSURE BOOSTER PUMPS

Pressure Booster Performance

  • High-performance multi-stage booster pump design

  • Capacities up to approximately 30–35 GPM (series typical)

  • Maximum pressures up to approximately 200 PSI (series typical)

  • Engineered for strong, consistent pressure boosting

  • Ideal for demanding residential and light commercial systems

Typical Applications

  • Pressure cleaning systems

  • Spray and mist systems

  • Jockey pump applications

  • General booster service and water pressure enhancement

  • Reverse osmosis feed systems

  • Water circulation and transfer

• General purpose pumping PRICING: CALL 800-748-1889

  • Motor: 1 HP

  • Frequency: 60 Hz

  • Speed: 3,450 RPM

  • Voltage: Dual 115/230V

  • Phase: Single Phase (1Ø)

  • Stages: 14-Stage Multi-Stage Design

  • Impellers: High-performance Noryl® engineered thermoplastic impellers for efficient flow, durability, and corrosion resistance

  • Construction: Durable cast iron pump body

  • Seal Material: Viton® mechanical seal for dependable, leak-free operation

PB Series-Booster-Repair-Parts-Pg-4-8A


$850.21

48

Register/Login to Order
