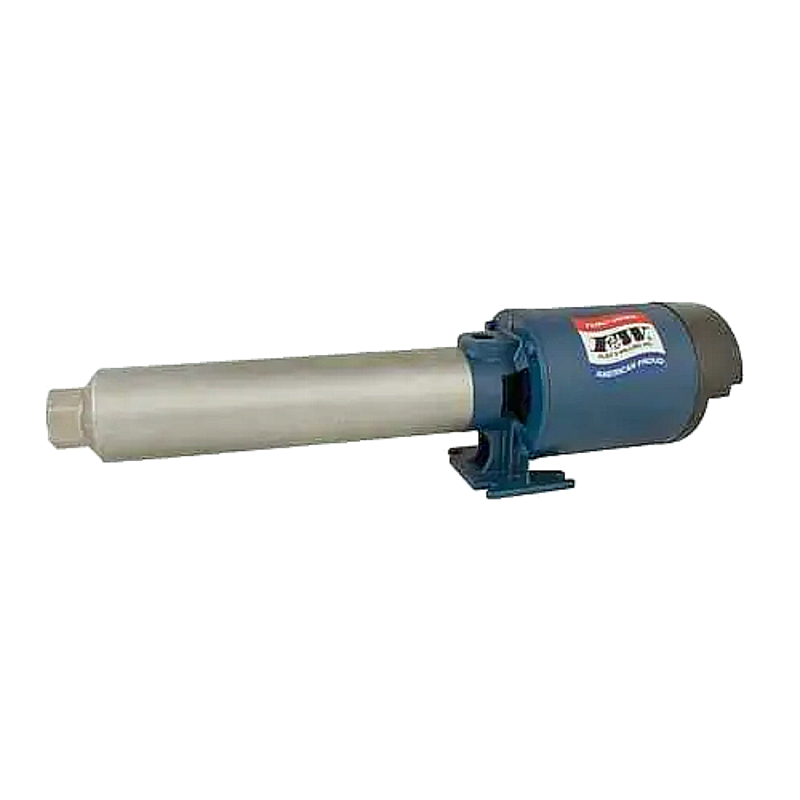

FLINT & WALLING - F&W PB1014S101 1HP BOOSTER PUMP
Return to FLINT AND WALLING PRESSURE BOOSTER PUMPS

Pressure Booster Performance

  • Stainless steel multi‑stage booster pump designed for consistent pressure delivery

  • Capacities up to approximately 30–35 GPM (model series typical)

  • Pressures up to approximately 200 PSI (model series typical)

  • Smooth, reliable performance for residential and light commercial systems

Typical Applications

  • Pressure cleaning systems

  • Spray and mist systems

  • Jockey pump service

  • Booster service and water pressure enhancement

  • Reverse osmosis feed systems

  • Water circulation and transfer

  • General purpose pumping

Pricing

Call 800‑748‑1889 for current pricing and availability.

  • Motor Power: 1 HP continuous duty

  • Frequency: 60 Hz

  • Speed: 3,450 RPM

  • Phase Options: Single Phase (1Ø) or Three Phase (3Ø)

  • Stages: 14‑Stage Multi‑Stage Design

  • Impellers: High-performance Noryl 731™ thermoplastic impellers for durability and corrosion resistance

  • Pump Construction: Stainless steel pump body for long-term corrosion protection

  • Seal Type: Viton® mechanical seal for leak-resistant operation

  • Connections: 1" FNPT inlet and outlet

  • Voltage Options: Dual 115/230V for flexible installation

PB Series-Booster-Repair-Parts-Pg-4-8A


Login to View Price

48

Register/Login to Order
