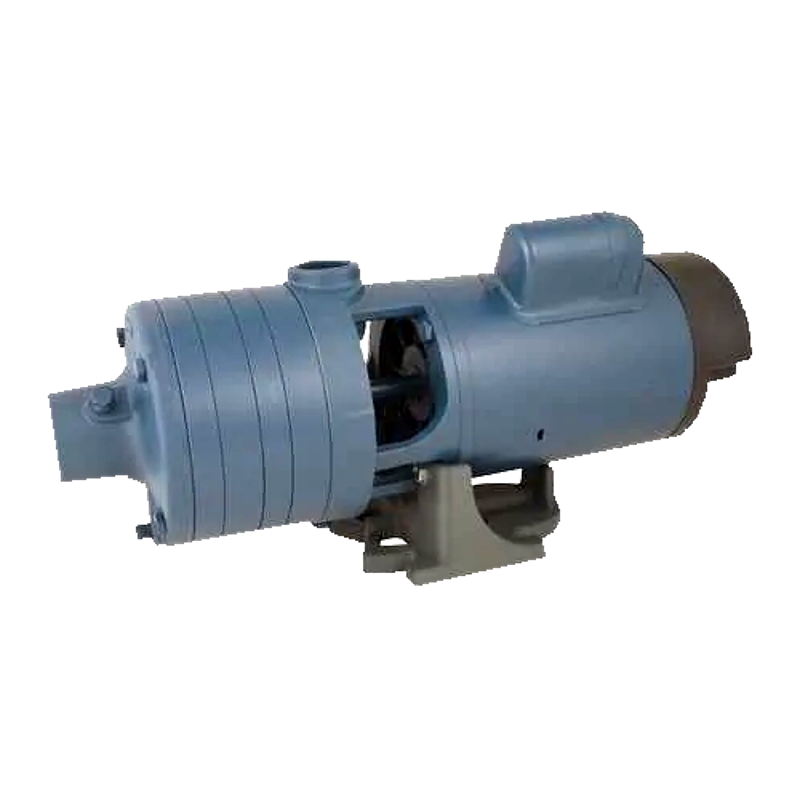

FLINT & WALLING - F&W PB2711A201 2HP BOOSTER PUMP
Return to FLINT AND WALLING PRESSURE BOOSTER PUMPS

Pressure Booster Performance

  • Heavy-duty 2 HP multi-stage booster pump

  • High-capacity performance up to approximately 60–65 GPM (series typical)

  • Maximum pressures up to approximately 220–240 PSI (series typical)

  • 27-stage design for strong, smooth, and consistent water pressure output

  • Cast iron construction for rugged, long-lasting operation

Typical Applications

  • High-pressure cleaning systems

  • Spray and mist systems

  • Jockey pump service

  • Booster service for residential and commercial water systems

  • Reverse osmosis feed systems

  • Water circulation and transfer

  • Irrigation and general purpose pumping

Pricing

Call 800-748-1889 for current pricing and availability.

  • Motor: 2 HP continuous duty

  • Frequency: 60 Hz

  • Speed: 3,450 RPM

  • Voltage: Dual 115/230V

  • Phase Options: Available in Single Phase (1Ø) or Three Phase (3Ø)

  • Stages: 27-Stage Multi-Stage Design

  • Impellers: High-performance Noryl® engineered thermoplastic impellers for efficient flow, long life, and corrosion resistance

  • Construction: Heavy-duty cast iron pump body for durability

  • Seal Material: Viton® mechanical seal for reliable, leak-resistant service

  • Connections: Typically 1" FNPT inlet and outlet (confirm on spec sheet)

PB Series-Booster-Repair-Parts-Pg-4-8A


Login to View Price

54.8

Register/Login to Order
