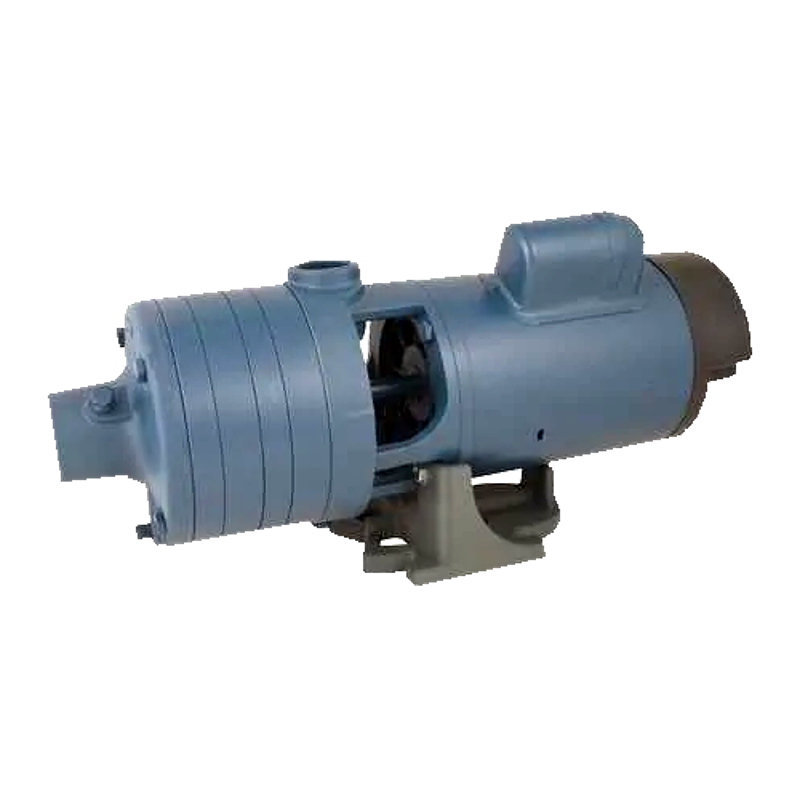

FLINT & WALLING - F&W PB3506A201 2HP BOOSTER PUMP
Return to FLINT AND WALLING PRESSURE BOOSTER PUMPS

Pressure Booster Performance

  • Heavy-duty 2 HP multi-stage booster pump

  • High-capacity performance up to approximately 45–50 GPM (series typical)

  • Maximum pressures up to approximately 220 PSI (series typical)

  • 35-stage design for strong, smooth, and consistent pressure output

  • Rugged cast iron construction for durability in demanding applications

Typical Applications

  • Commercial and residential pressure cleaning systems

  • Spray and mist systems

  • Jockey pump service

  • Booster service for municipal or private water systems

  • Reverse osmosis feed systems

  • Irrigation systems

  • Water circulation and transfer

  • General purpose pumping

Pricing

Call 800-748-1889 for current pricing and availability.

  • Motor: 2 HP continuous duty

  • Frequency: 60 Hz

  • Speed: 3,450 RPM

  • Voltage: Dual 115/230V

  • Phase Options: Single Phase (1Ø) or Three Phase (3Ø)

  • Stages: 35-Stage Multi-Stage Design

  • Construction: Heavy-duty cast iron pump body for durability

  • Impellers: High-performance Noryl® engineered thermoplastic impellers for efficient flow, corrosion resistance, and long service life

  • Mechanical Seal: Viton® for leak-resistant, reliable operation

  • Connections: 1" FNPT inlet and outlet

PB Series-Booster-Repair-Parts-Pg-4-8A


Login to View Price

53.5

Register/Login to Order
