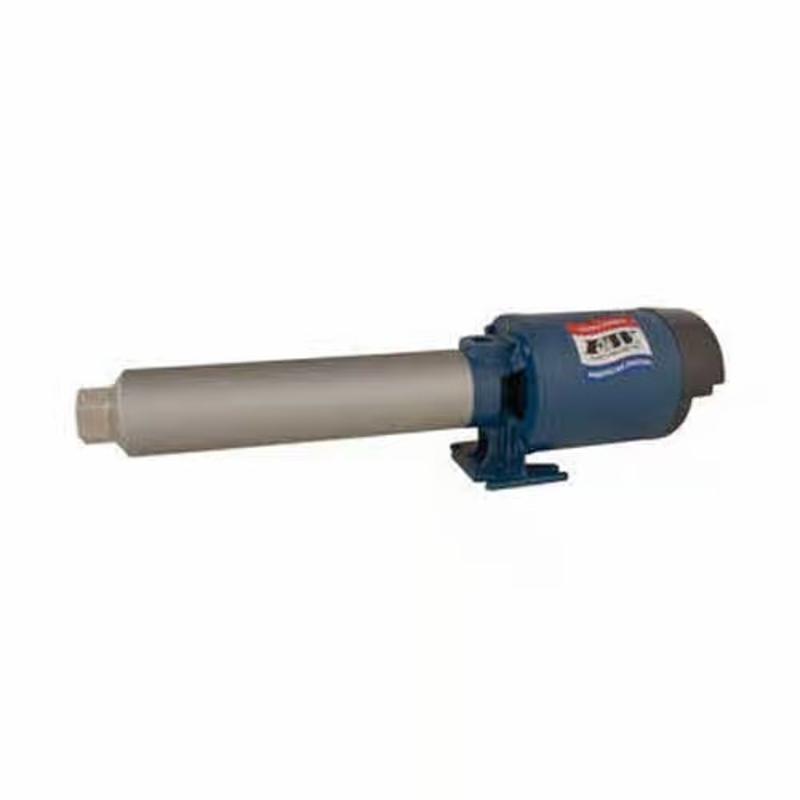

FLINT & WALLING - F&W PB1014A103 1HP BOOSTER PUMP
Return to FLINT AND WALLING PRESSURE BOOSTER PUMPS

Pressure Booster Performance

  • Heavy-duty 1 HP multi-stage booster pump

  • Capacities up to approximately 27–30 GPM

  • Pressures up to approximately 190–200 PSI

  • Multi-stage design ensures smooth and consistent pressure

  • Durable cast iron construction for long service life

Typical Applications

  • Residential and light commercial pressure cleaning systems

  • Spray and mist systems

  • Jockey pump service

  • Booster service for water systems

  • Reverse osmosis feed systems

  • Irrigation systems

  • Water circulation and transfer

  • General purpose pumping

Pricing

Call 800-748-1889 for current pricing and availability.

  • Motor Power: 1 HP continuous duty

  • Frequency: 60 Hz

  • Speed: 3,450 RPM

  • Phase: Single Phase (1Ø) or Three Phase (3Ø)

  • Stages: 14-Stage Multi-Stage Design

  • Pump Construction: Rugged cast iron body for durability

  • Impellers: High-performance Noryl® thermoplastic impellers for efficiency and corrosion resistance

  • Seal Type: Viton® mechanical seal for leak-resistant operation

  • Connections: 1" FNPT inlet and outlet

  • Voltage: 115/230V dual voltage capability

  • Duty Cycle: Continuous operation suitable for residential and light commercial applications

PB Series-Booster-Repair-Parts-Pg-4-8A
