736906003 controller provides a reliable basic means of controlling one 120, 208, or 240 VAC single phase pump in water and wastewater installations. The motor contactor version utilizes two control switches that activate a magnetic motor contractor to run the pump on and off. Common applications include cistern pump chambers, sump pump basins, irrigation systems, and lift stations.

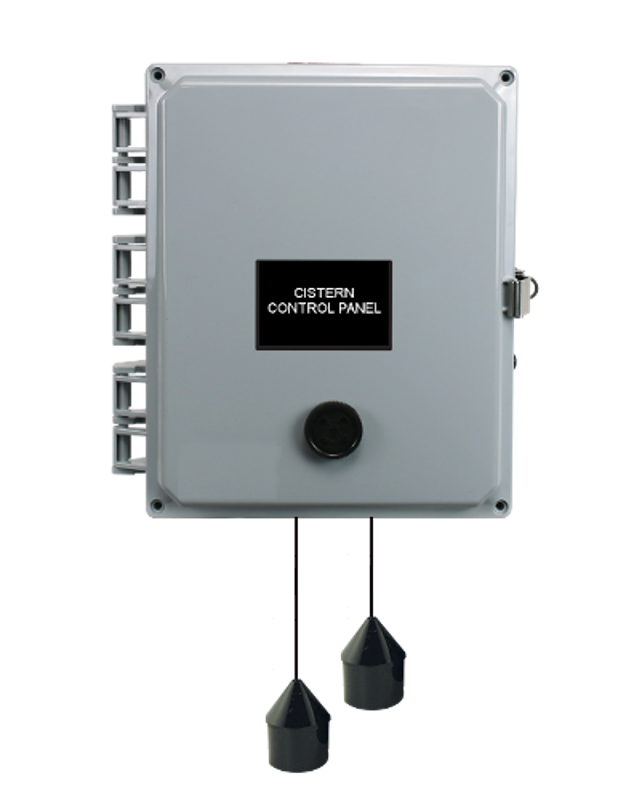

- 7.1" x 7.1" x 3.3" polycarbonate enclosure (NEMA 4/4X for indoor or outdoor use) with tabs for wall mounting
- 120 volt control circuit
- 120/208-240 volt pump control circuit
- 2 HP maximum load at 120 volt
- 5 HP maximum load at 240 volt
- Hand-Off-Auto switch through side of enclosure
- Terminal block for all control connections
- Control fuse
- Two normally closed float switches with 20' cords included for tank fill application
- Wiring diagram and operation instructions included
- Call for optional pump down floats
- One year limited warranty
