• Discharge head: stainless steel, 1¼” NPT, safety rope eyelet included
• Check valve poppet: internal removable, with elastomer sealing ring
• Top bearing: closed, sintered, lead-free sleeve bearing
• Pump shell: heavy-wall stainless steel
• Cable guard: stainless steel
• Staging*: Noryl® impellers and diffusers; stainless steel floating bearing inserts and acetal diffuser plates
• Pump shaft*: stainless steel hex shaft with one piece motor-to-shaft coupling
• Motor bracket: NEMA standard, stainless steel with stainless steel suction screen
• Motor: ½ thru 2 HP, 1 PH pumps feature Flint & Walling motors.
• Motor controls: control boxes required for three-wire, 1 Ph motors. Order controls separately.
SEE "RELATED CATEGORIES" FOR ADDITIONAL PARTS YOU MAY NEED FOR INSTALLATION

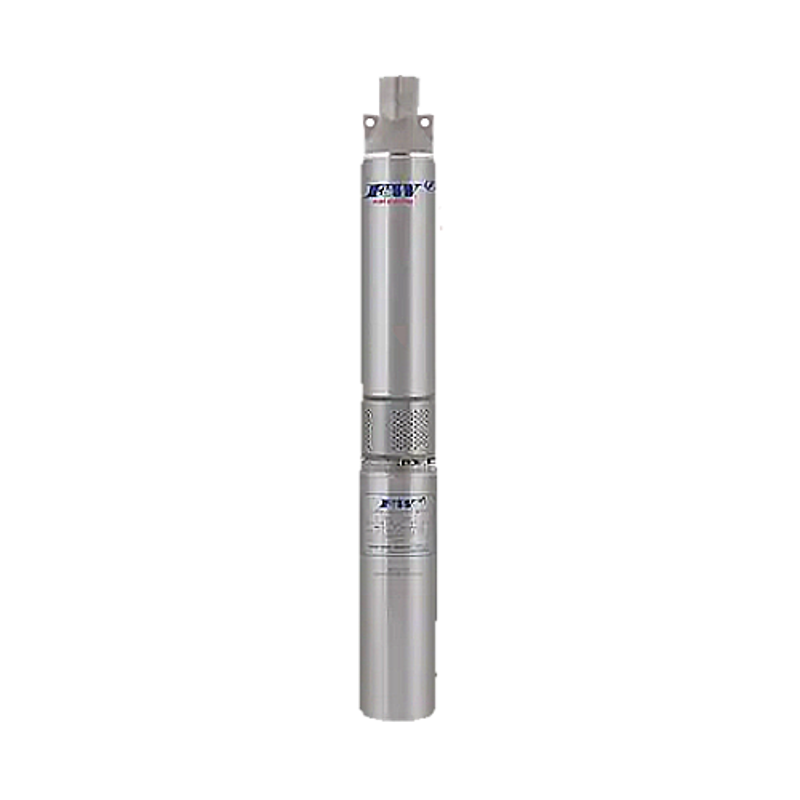

1/2 HP 5 GPM @ 300' HEAD 230v 2 Wire

S Commander-Submittal Data
