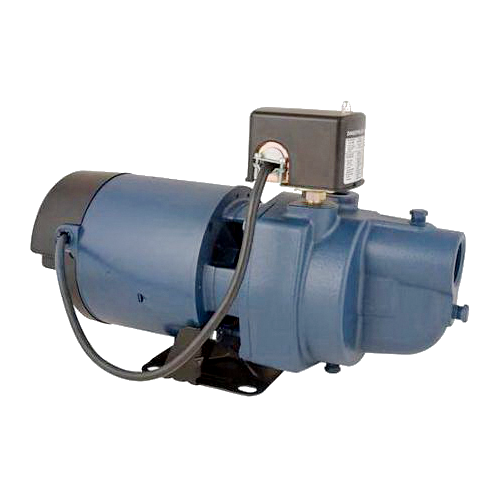

EK SERIES:
• Designed for shallow wells with suction lifts from 0' to 25' (0 - 8 m). These pumps provide capacities up to 1200 GPH and pressures up to 50 PSI.
• EK models feature the famous Flint and Walling “Service Plus” motor, available with Uni-frame flange construction. The F&W 56 frame, double ball bearing motor offers the ultimate in performance and dependability.
• Designed for years of trouble-free operation and simple, swift, on-site servicing, EK models feature unique interchangeability of replacement parts to keep inventories at a minimum.
• Suction lift: 0' to 25'
• Includes: pump, motor, pressure switch and ejector

• Motor – 3/4 HP
• Hertz – 60 Hz
• RPM – 3450 RPM
• Volts – 115 or 230V
• Phase – 1 PH
• Maximum Capacity - 15.5 GPM
• Maximum Shutoff Pressure - 65 PSI

CPH - CPJ - EK Spec Sheet

EK Complete Parts List Image
Order Parts Here
