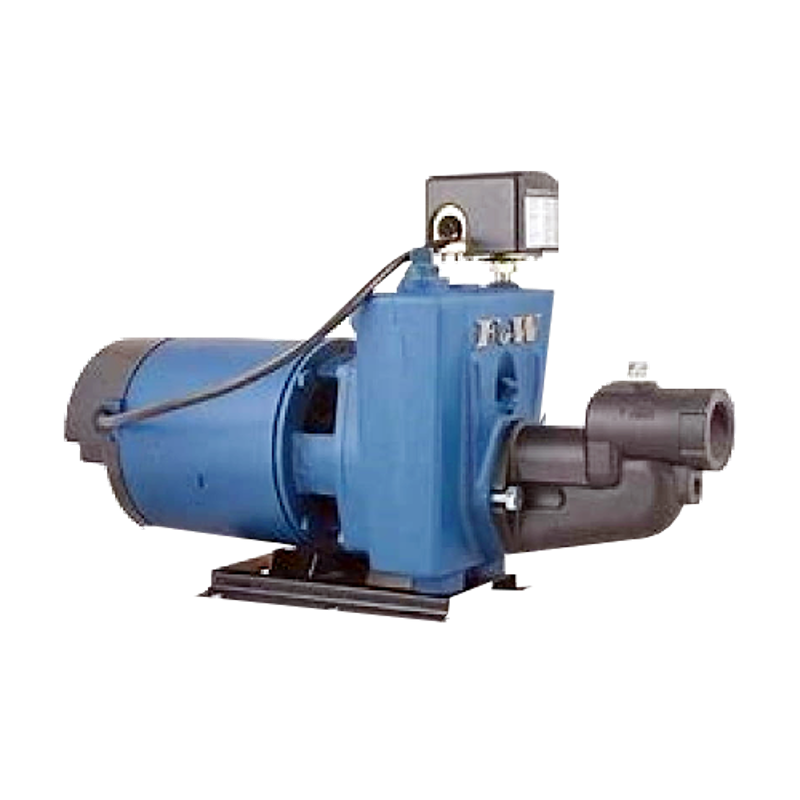

• Designed for suction lifts up to 25' (8 m). These powerful pumps provide capacities up to 1,800 GPH and as much as 60 lb pressure.
• The CPJ models feature the famous Flint and Walling “Service Plus” motor, available in NEMA J construction. The F & W 56 frame, double ball bearing motor offers the          ultimate in performance and dependability.
• Designed for years of trouble-free operation and simple, swift, on-site servicing, the CPJ features unique interchangeability of replacement parts to keep inventories at a        minimum.
• Includes: pump, motor, pressure switch and shallow well ejector

• Motor – 1 HP
• Hertz – 60 Hz
• RPM – 3450 RPM
• Volts – 115 or 230V
• Phase – 1 PH
• Maximum Capacity - 23.7 GPM
• Maximum Shutoff Pressure - 70 PSI

CPH - CPJ - EK Spec Sheet

CPJ Complete Parts List Image
Order Parts Here
