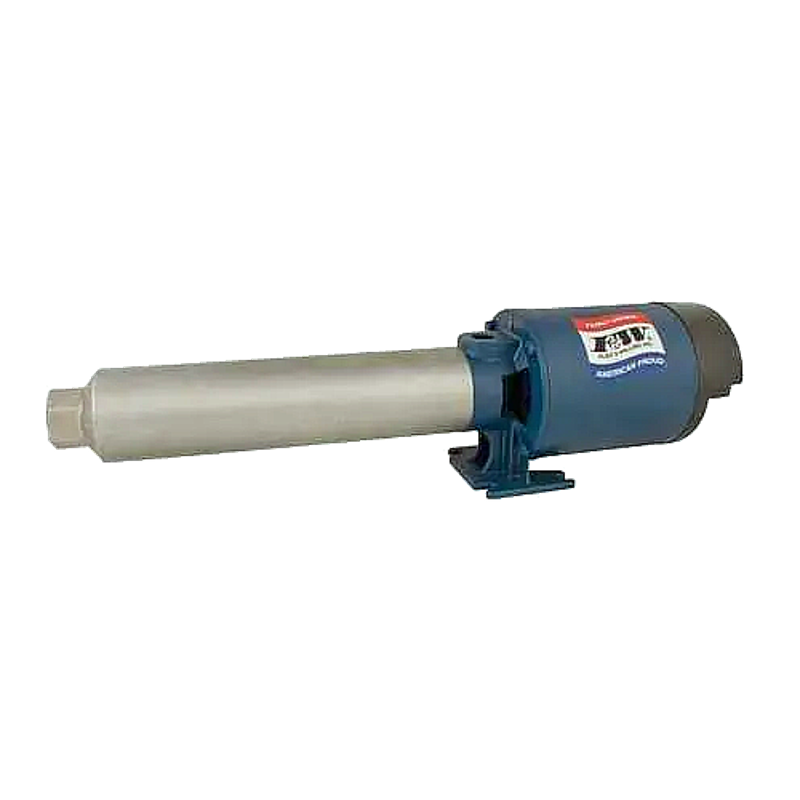

FLINT & WALLING - F&W PB0712S071 3/4HP BOOSTER PUMP
Return to FLINT AND WALLING PRESSURE BOOSTER PUMPS

Pressure Booster Performance

  • Multi-stage stainless steel booster pump design

  • Capacities up to 27.6 GPM (series typical)

  • Pressures up to 190 PSI (series typical)

  • Provides smooth, consistent pressure boosting for residential and light commercial applications

Typical Applications

  • Pressure cleaning systems

  • Spray and mist systems

  • Jockey pump service

  • General booster service and water pressure enhancement

  • Reverse osmosis feed systems

  • Water circulation and water transfer
  • General purpose pumping PRICING: CALL 800-748-1889

  • Motor: 3/4 HP

  • Frequency: 60 Hz

  • Speed: 3,450 RPM

  • Voltage: Dual 115/230V

  • Phase: Single Phase (1Ø)

  • Stages: 16-Stage Multi-Stage Design

  • Impellers: High-performance Noryl® thermoplastic engineered impellers for efficient flow, durability, and corrosion resistance

  • Construction: Stainless steel pump body for enhanced corrosion protection

  • Seal Material: Viton® mechanical seal for leak-free operation

PB Series-Booster-Repair-Parts-Pg-4-8A


$1,197.35
