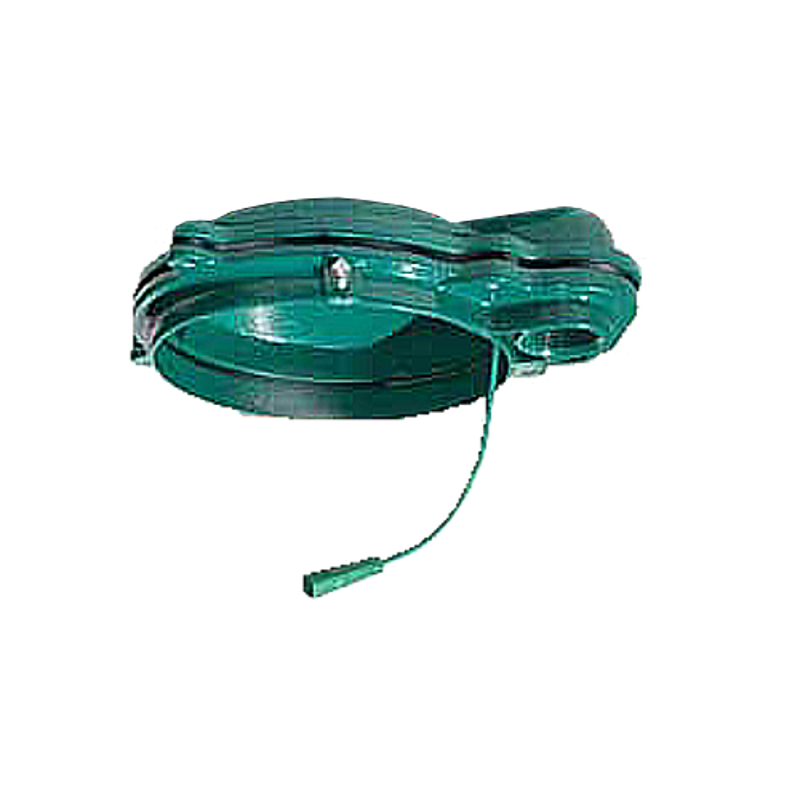

WTCC-5- 5" CAST IRON LOCKING WELL CAP DBS1200
Return to WELL CAPS

Nominal 5" Casing, 5-9/16" O.D. Casing 1" Conduit

  • WTCC Caps Water Systems Council - PAS-97 (04) listed
  • Cast iron with stainless steel bolts
  • WTCC models are vented to meet state codes
  • Five bolt pull-down for sure seal and tamper resistance
  • Heavy Buna-N Seal prevents foreign matter intrusion
  • Buna-N rubber seal is internal to cap assembly and is not exposed to outside environment
  • Equipped with an ultra flexible 6" grounding connector 12 AWG, UL486A and UL486C
  • Listed and tested to CSA standards


• Durable blue powder coat paint finish on cast iron construction
• Vermin proof with 2 large (3/4") screened air vents
• Greater clearance for submersible pump cable
• Deep, forgiving gasket designed for sealing unevenly cut casing
• Positive compression achieved by tightening 5 bolts
• Includes grounding bolt assembly


$66.95

3.25

5180WTCC5CI
