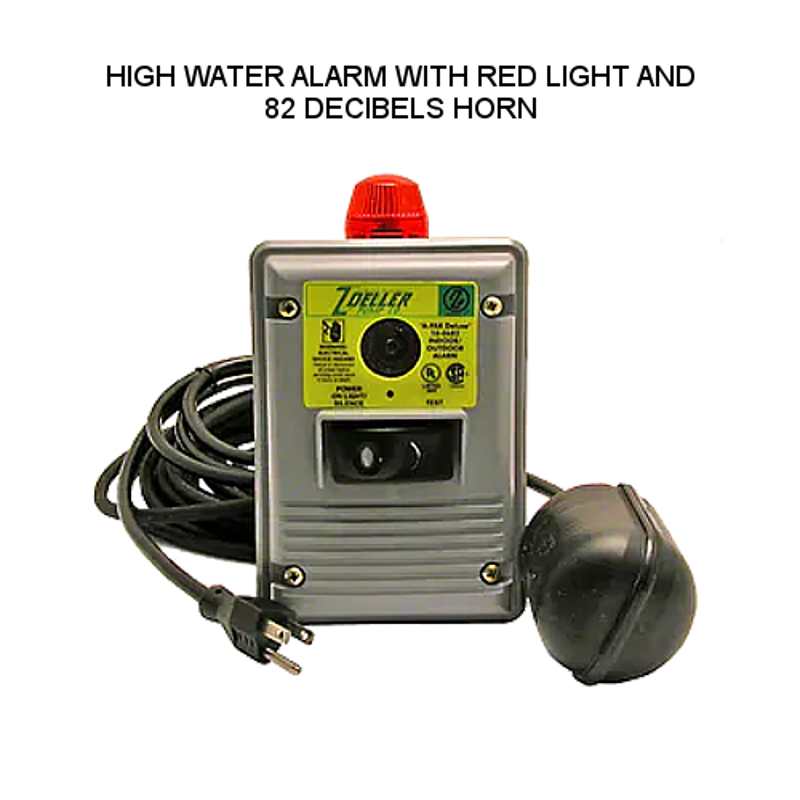

10-0682 WATERPROOF A-PAK ALARM
Return to Controls

SPECIFICATIONS:
• APak Outdoor Alarm System Features
• NEMA 4X Outdoor use per UL 864 for US and Canada
• Alarm system (horn & light) operates to warn of a high-water condition
• Horn is rated 82 decibels at 10’ (3 m)
• Auxiliary dry contacts for high level alarm, 5 Amps
• Operates on separate circuit from pump, 115 VAC
• Alarm test and horn silence switch with automatic reset
• Terminal connections for a pump and float switch (Model 91104-0001)
• Can be used with liquids to 140 °F (60 °C)
• 15’ (5 m) float switch (Model 91104-0001)
• 20’ (6 m) float switch, 6’ (2 m) power cord, watertight cord connectors (Model 10-0682)
• 3 year limited warranty (Model 10-2614, 10-0682, 911040001)

SPECIFICATIONS:
• APak Outdoor Alarm System Features
• NEMA 4X Outdoor use per UL 864 for US and Canada
• Alarm system (horn & light) operates to warn of a high-water condition
• Horn is rated 82 decibels at 10’ (3 m)
• Auxiliary dry contacts for high level alarm, 5 Amps
• Operates on separate circuit from pump, 115 VAC
• Alarm test and horn silence switch with automatic reset
• Terminal connections for a pump and float switch (Model 91104-0001)
• Can be used with liquids to 140 °F (60 °C)
• 15’ (5 m) float switch (Model 91104-0001)
• 20’ (6 m) float switch, 6’ (2 m) power cord, watertight cord connectors (Model 10-0682)
• 3 year limited warranty (Model 10-2614, 10-0682, 911040001)


$294.00
