Shaft – 17-4 stainless steel
• High strength / high corrosion resistance
• Outstanding mechanical properties at high temps
• NEMA splined - spline detail includes chamfered edges for easier
• assembly to the pump Motor casing – 304 stainless-steel
• The most versatile and widely-used stainless steel
• Excellent forming and welding characteristics
• Excellent corrosion resistance Upper and lower bracket
• Epoxy-coated cast iron – coating is TNEMEC 140, an NSF certified coating
• Upper bracket – “dual-flange” design
• Faster and easier assembly to the pump Motor Lead – XLPE (not shown)
• 17' – potted connection, including ground wire
• Non-jacketed wire assembly for easier handling and connections
• Fully field replaceable Thrust bearing
• Water-lubricated, Kingsbury-type
• Thrust ratings are between 3% and 35% better than
• leading 6” submersible motors Pressure equalizing diaphragm
• Utilizes static pressure to regulate internal
• pressure, and minimize expansion pressure Spring-less design – less parts, less complexity

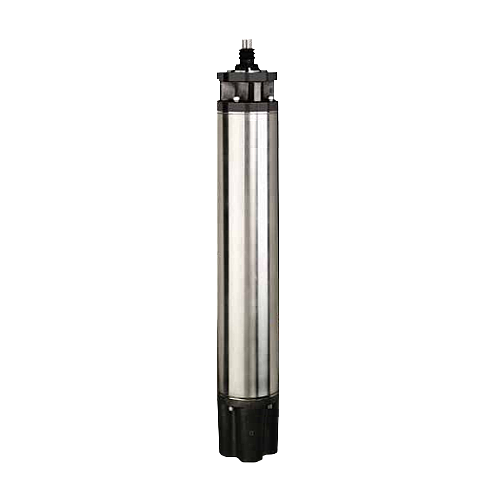

PENTEK 15HP 230 VOLT 60 HZ 1 PHASE 6"

pentek-xe-6-xe-8-brochure motor submittal
