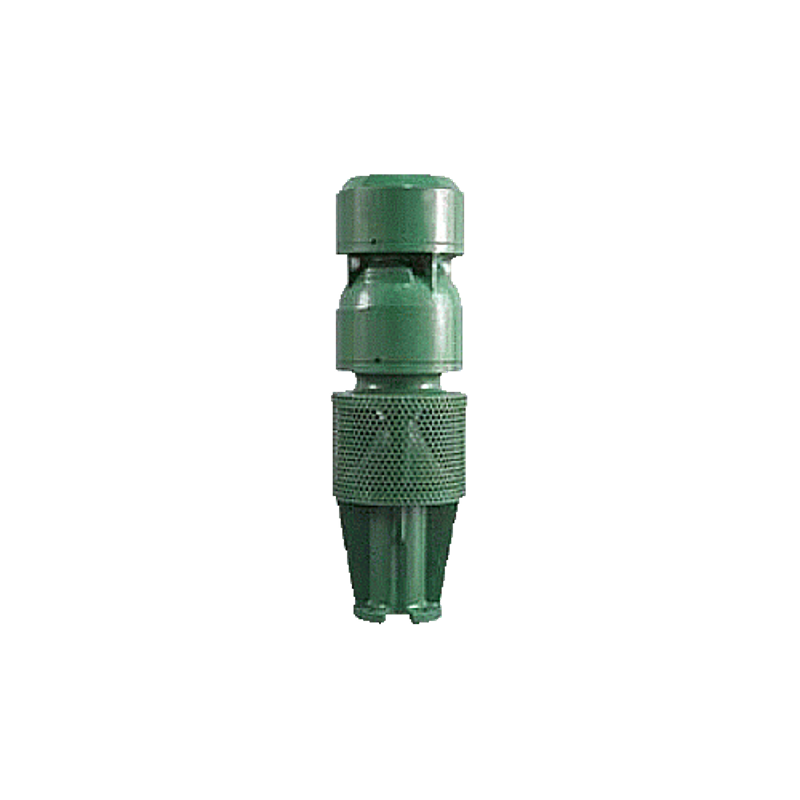

• Discharge adapter– Ductile iron 4" & 6" female
• Pump shaft – Chrome plated C-1045, or stainless steel machined, polished and straightened
• Bushings – Bronze, Buna N rubber, or Vesconite
• Intermediate bowl – Close grained cast iron baked on porcelain lining, threaded connections, reinforced flange
• Impeller – Bronze, - stainless steel available in some models. Closed design available in a variety of capacities. Balanced to reduce vibration
• Collet – 416 stainless steel. Split taper provides tight lock
• Sand collar – Bronze. Restricts sand entry to motor bracket bushing
• Motor bracket – Close grained cast iron closed design for added motor protection. Available for 6” (15 cm) and 8” (20 cm) standard NEMA motors
• Upthrust bushing - Bronze. Restrains initial upthrust
• Inlet screen – Stainless steel T304. Limits entry of large objects into pump
• Motor coupling – 416 stainless steel. Provides non-corrosive connection between motor and pump shaft
• Cable guard – Stainless steel. Provides motor lead protection
• Material Type - Ductile iron casting

15 HP / 325 GPM @ 125' HEAD

Wolf6mmbvsubmittal
