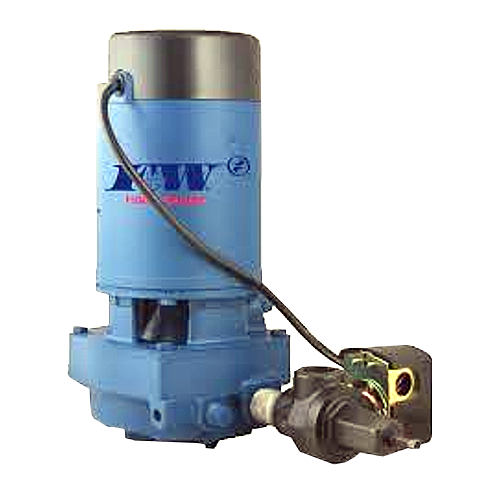

VS series:
• Two stage with adjustable diaphragm pressure provides maximum capacities and pressure at all times
• Nema J dual voltage motor features copper windings, double ball bearings and overload protection with automatic reset
• Precision-molded impeller and diffuser insures perfect alignment and ultra-smooth passages for high performance and reliability
• Large one-piece pump case design, pump can be disassembled without disturbing well or discharge pipes.
• Top-located priming port and discharge prevents air lock and allows for easy priming
• Convenient tappings for draining of pump and installation of pressure switch and pressure gauge.

• Motor 1 HP
• Hertz 60 HZ
• RPM 3450 RPM
• Phase 1 OR 3 PH
• Maximum Flow 16.7 GPM
• Maximum Shut Off 75 PSI
• Noryl® Thermoplastic Impeller

VS-Submittal Data

VS Complete Parts List Image
Call 800-621-4291 For Parts Pricing and Availability
