• Float-operated, submersible (NEMA 6), 2-pole switch
• Durable, cast iron construction – switch cap, motor and pump housing
• Engineered plastic base
• Stainless steel screws, bolts, handle, guard, arm and seal assembly
• Corrosion-resistant, powder coated epoxy finish
• Hermetically-sealed, automatic reset thermal overload protection
• Upper and lower sleeve bearings running in bath of oil
• Carbon and ceramic shaft seal
• Passes 2” (50 mm) spherical solids
• 2” NPT discharge
• On point: 12-1/2” (31.8 cm)
• Off point: 4-1/2” (11.4 cm)
• Simplex and duplex systems available
• Automatic and non-automatic models available
• Non-automatic for variable level systems
• Models available packaged with piggyback variable level float switch
• 3 year limited warranty
• Basin size – simplex: 18” x 30”
• Standard automatic pump – 4/10 HP 115V
• Approximate 8 gallons pumped per cycle

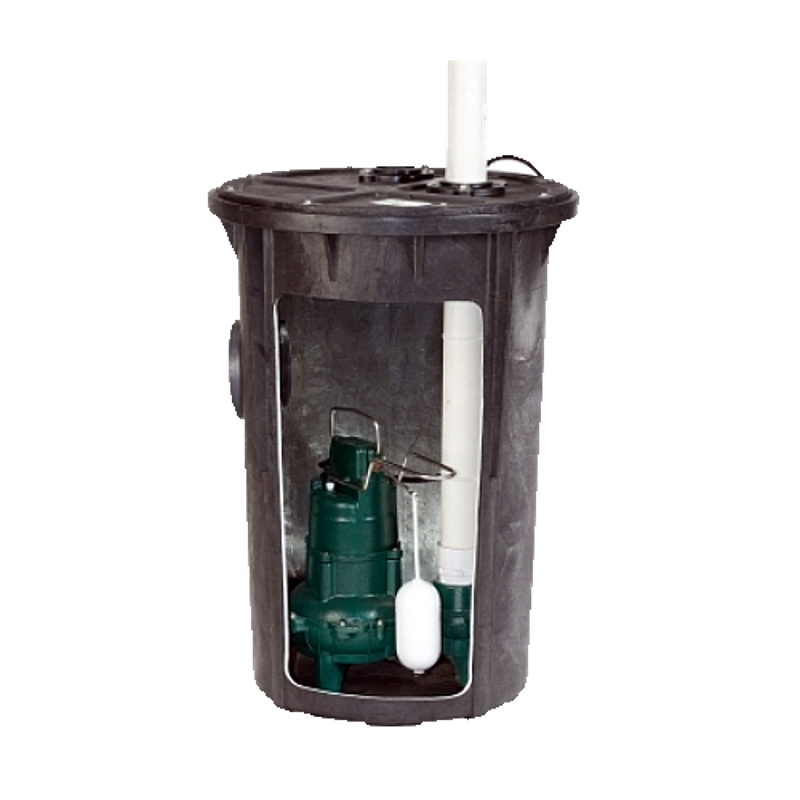

ZOELLER 912-0007 SIMPLEX SYSTEM

ZOELLER 912-0007 SIMPLEX SYSTEM
